今天公司向客户申请oracle数据库，对方给我们四个ip，通过了解要使用TNS的方式进行连接。特此记录一下链接方式。

通过Navicat连接

1. 需要创建tnsnames.ora文件，内容如下

ORACLE_RAC =
  (DESCRIPTION =
    (ADDRESS_LIST =
      (ADDRESS = (PROTOCOL = TCP)(HOST = xx.xx.xx.xx)(PORT = 1521))
      (ADDRESS = (PROTOCOL = TCP)(HOST = xx.xx.xx.xx)(PORT = 1521))
      (ADDRESS = (PROTOCOL = TCP)(HOST = xx.xx.xx.xx)(PORT = 1521))
      (ADDRESS = (PROTOCOL = TCP)(HOST = xx.xx.xx.xx)(PORT = 1521))
    )
    (CONNECT_DATA =
      (SERVICE_NAME = orcl)
    )
  )

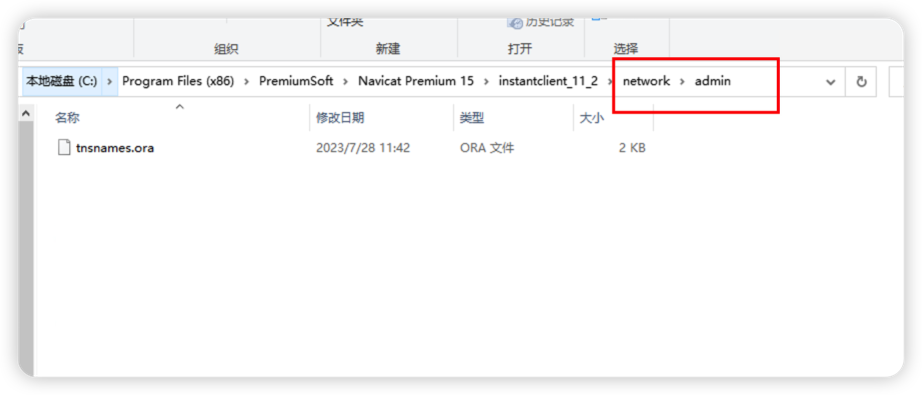

2. 添加到指定目录
   Navicat安装目录

C:\Program Files (x86)\PremiumSoft\Navicat Premium 15\instantclient_11_2\network\admin

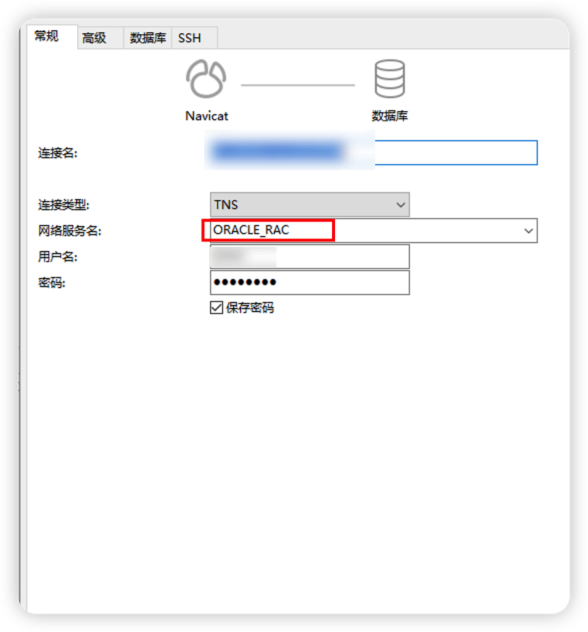

3. 连接oracle数据库
   选择 tnsnames.ora 中编写的 ORACLE_RAC


SpringBoot datasource连接字符串

内容如下，为了便于修改，我手动后换行了，修改好对应的ip地址需要将换行符去掉即可

jdbc:oracle:thin:@(DESCRIPTION=(ADDRESS_LIST=(
		ADDRESS=(PROTOCOL=TCP)(HOST=xx.xx.xx.xx)(PORT=1521))
		(ADDRESS=(PROTOCOL=TCP)(HOST=xx.xx.xx.xx)(PORT=1521))
		(ADDRESS=(PROTOCOL=TCP)(HOST=xx.xx.xx.xx)(PORT=1521))
		(ADDRESS=(PROTOCOL=TCP)(HOST=xx.xx.xx.xx)(PORT=1521))
	)(CONNECT_DATA=(SERVICE_NAME=orcl)))
